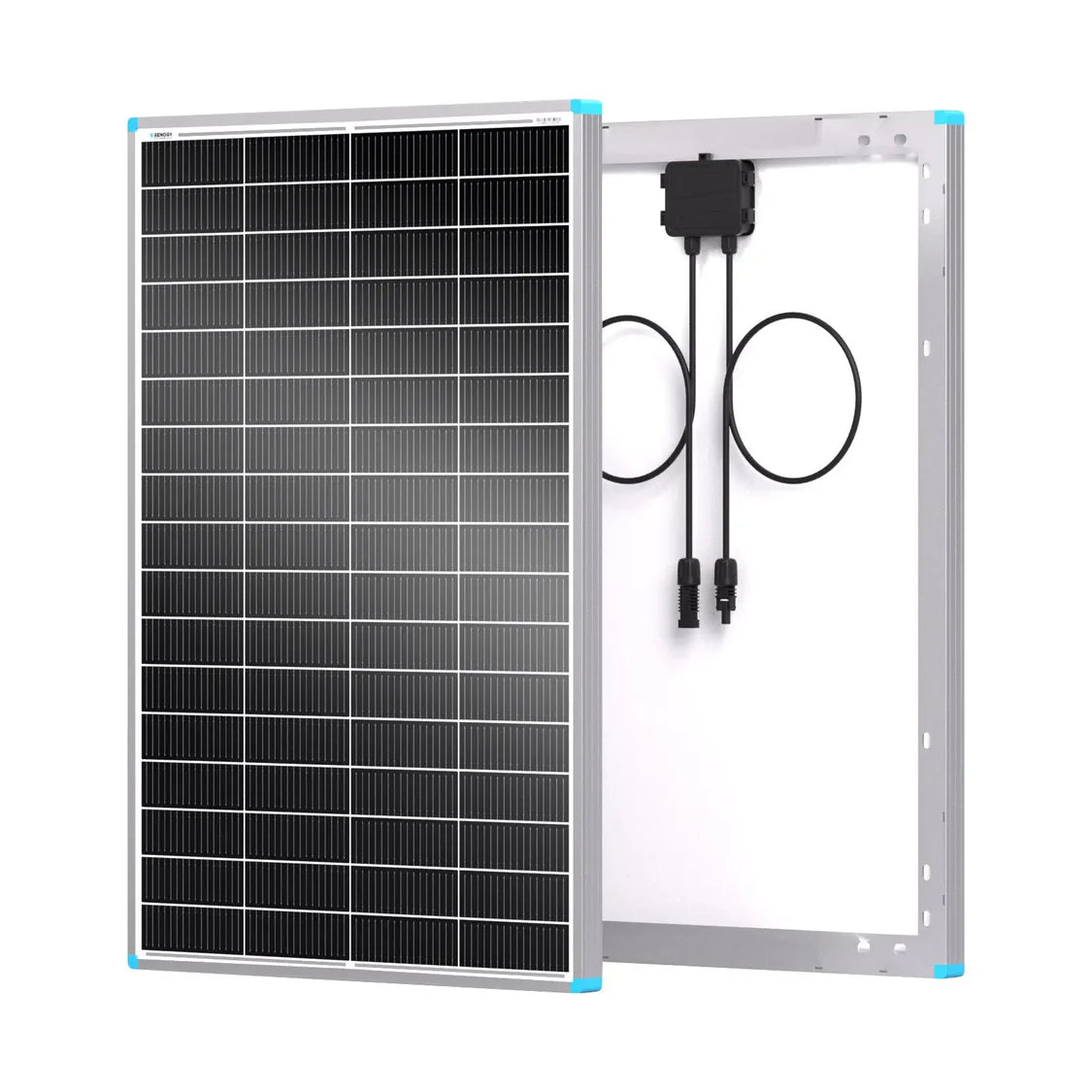

100W N-Type Solar Panel- Renogy
$109.99
Key Features
- -25% Efficiency with N-Type cells for higher output and durability
- -Compatible with 12V & 24V systems for versatile use
- -Perfect for Class B vans – 7.5% smaller, 11.7% lighter
- -Low temperature loss and high heat resistance for hot climates
- -≤1% first-year power loss and 25-year 80% output
Reliable
- Better Performance from advanced N-Type cells. These N- Type cells help the compact panel generate more usable energy throughout the day while maintaining stronger long-term performance in outdoor conditions.
- 10 year warranty
Durable
- Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa).
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades.
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets.
Versatile
- Can be used for many different applications.
- Ground mount compatible.
- Compatible with on-grid and off-grid inverters.
Installation Ready
- Pre-drilled holes on the back of the panel allow for fast mounting and securing.
- Pre-drilled holes included for grounding.
| Specifications | |
|---|---|
|
Maximum Series Fuse Rating: 15A |
Connectors: MC4 |
| Maximum Power: 100W | Maximum System Voltage: 600V DC (UL) |
| Optimum Operating Voltage (Vmp): 19.97V | Open-Circuit Voltage (Voc): 22.79V |
| Optimum Operating Current (Imp): 5.01A | Short-Circuit Current (Isc): 5.31A |
| Weight: 13.0 lbs / 5.9kg | Dimensions: 34.1x22.8x1.2in |
| Operating Temperature: -40°F to 185°F(-40°C to +85°C) | Panel Leads (Pair): 14AWG (4 m / 1.3 ft long) |
|
|
Power Output Warranty: 10-Year |
