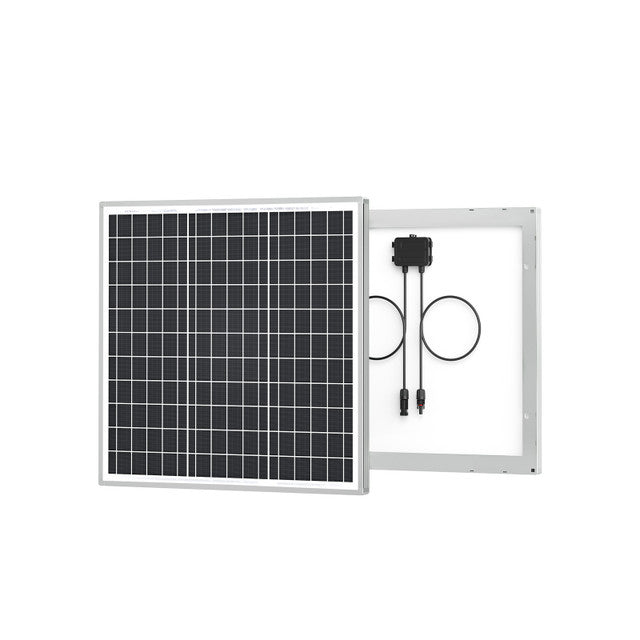

50W Rigid Solar Panel- Renogy
$54.99
Features
- - Compact and Reliable.
- - Superior Quality and Material.
- - Advanced Solar Cell Tech and Panel Structure.
- - Built to Last.
- - Fast and Easy Installation.

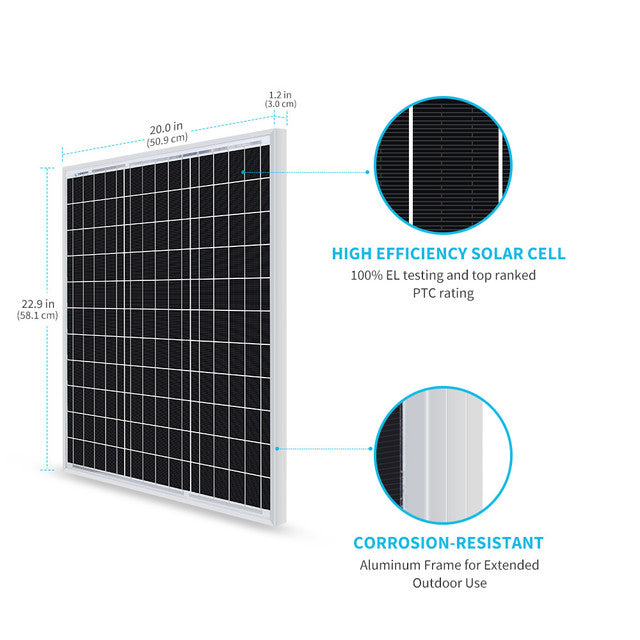

- - Dimensions: 22.9 x 20.0 x 1.2 inch
-
Key Features
Reliable
- EL tested solar modules; no hot-spot heating guaranteed.
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.
Durable
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades.

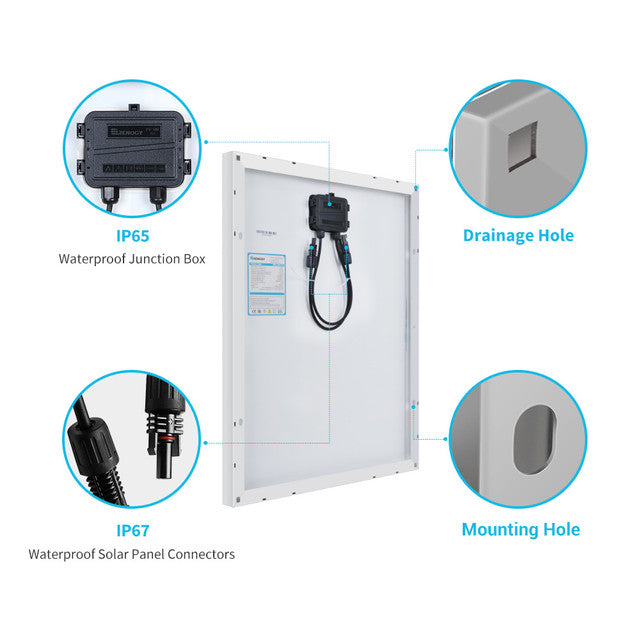

- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets.
Versatile
- Can be used for many different applications.
- Ground mount compatible.
- Compatible with on-grid and off-grid inverters.
Installation Ready
- Pre-drilled holes on the back of the panel allow for fast mounting and securing.
- Pre-drilled holes included for grounding.
| Specifications | |
|---|---|
| Output Cables: 1.31 ft | Connectors: MC4 |
| Maximum Power: 50W | Maximum System Voltage: 600V DC (UL) |
| Optimum Operating Voltage (Vmp): 18.6V | Open-Circuit Voltage (Voc): 22.3V |
| Optimum Operating Current (Imp): 2.69A | Short-Circuit Current (Isc): 2.94A |
| Weight: 7.72 lb / 3.5 kg | Dimensions: 22.9 x 20.0 x 1.2 in |
| Operating Temperature: -40°F to 194°F(-40°C to +90°C) | Panel Leads (Pair): 14AWG (4 m / 1.3 ft long) |
| Warranty: 5-year output warranty & material and workmanship warranty | Performance: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty |
