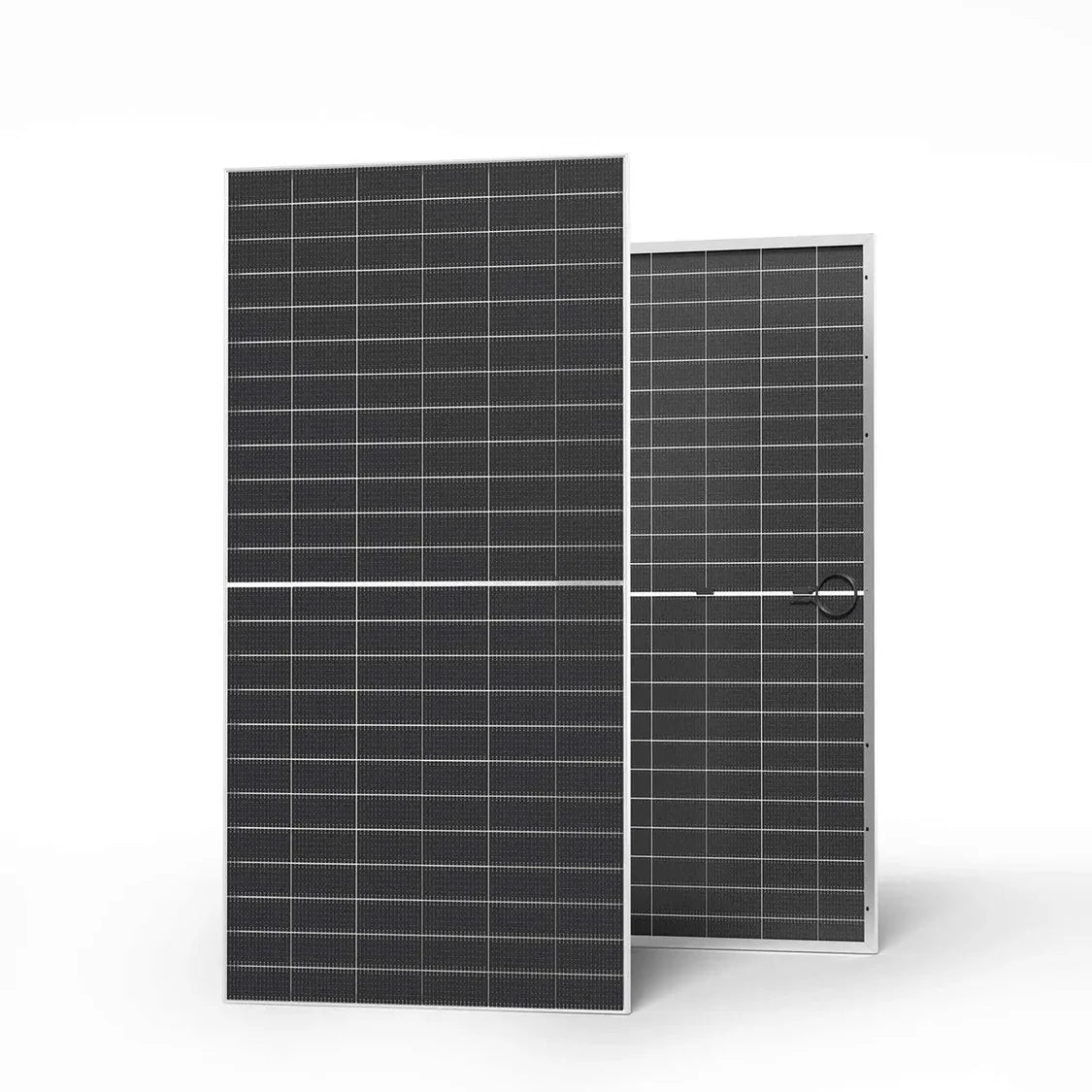

590W N-Type Bifacial Solar Panel Bundle- Renogy
$1,089.99
Key Features
- 25% Cell Efficiency with N-Type cells for higher output and durability
- 80% bifaciality factor, generating up to 177W more power
- Low-temperature coefficient for high performance in hot climates
- 16-busbar design for better energy conversion and longevity
- IP68 waterproof, backed by a 10-year warranty and 25-year 80% output warranty
- Dimensions: 89.7 x 44.6 x 1.4 inch

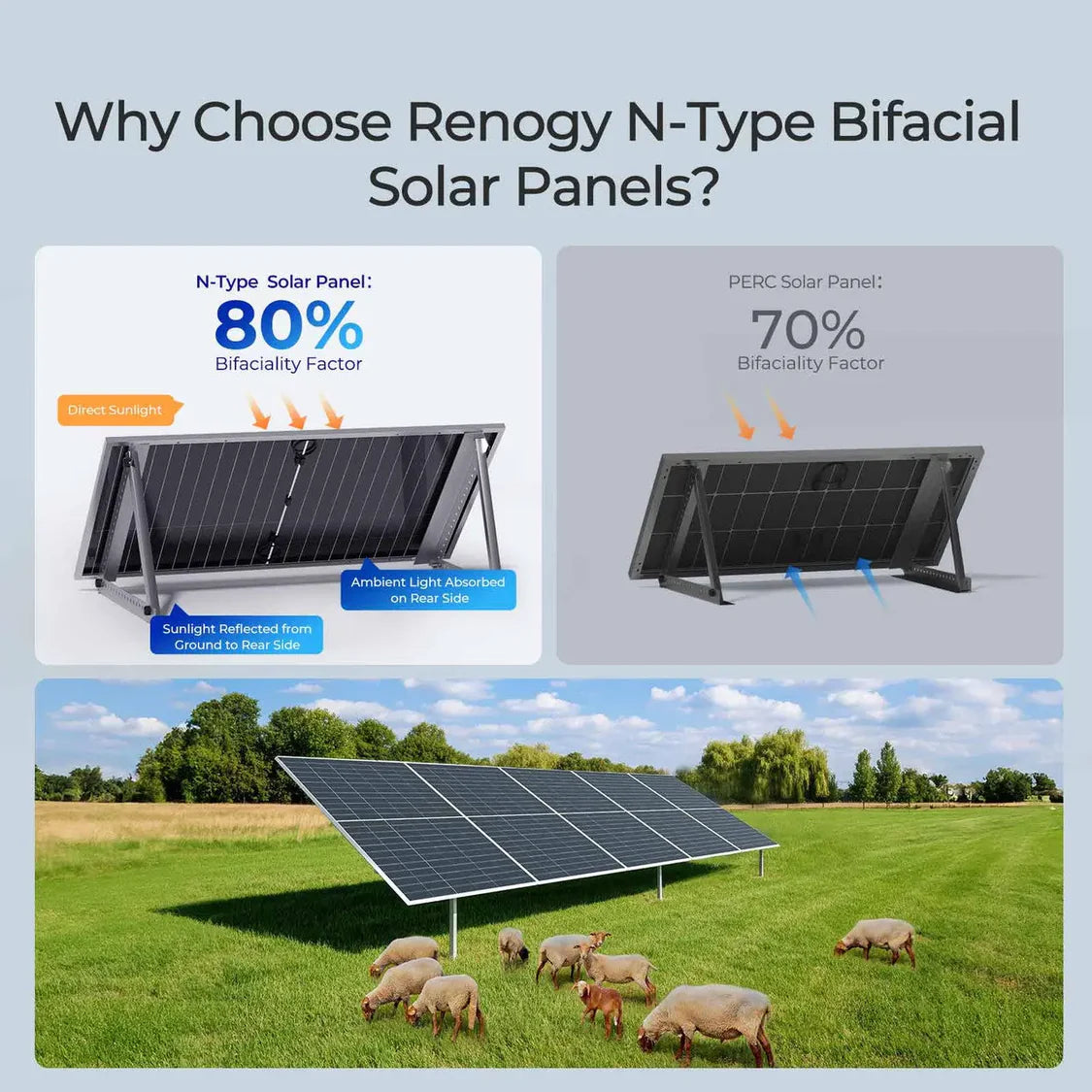

Up to 30% More Energy from the Same Space
Capture sunlight from the front and reflected light from the back to generate more energy from the same panel footprint. Best results come when installed where the rear side can receive reflected light, such as on sand, snow, or light-colored surfaces.
Reliable
- Better Performance from advanced N-Type cells. These N- Type cells help the compact panel generate more usable energy throughout the day while maintaining stronger long-term performance in outdoor conditions.
- 10 year warranty
Durable
- Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa).
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades.
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets.
Versatile
- Can be used for many different applications.
- Ground mount compatible.
- Compatible with on-grid and off-grid inverters.

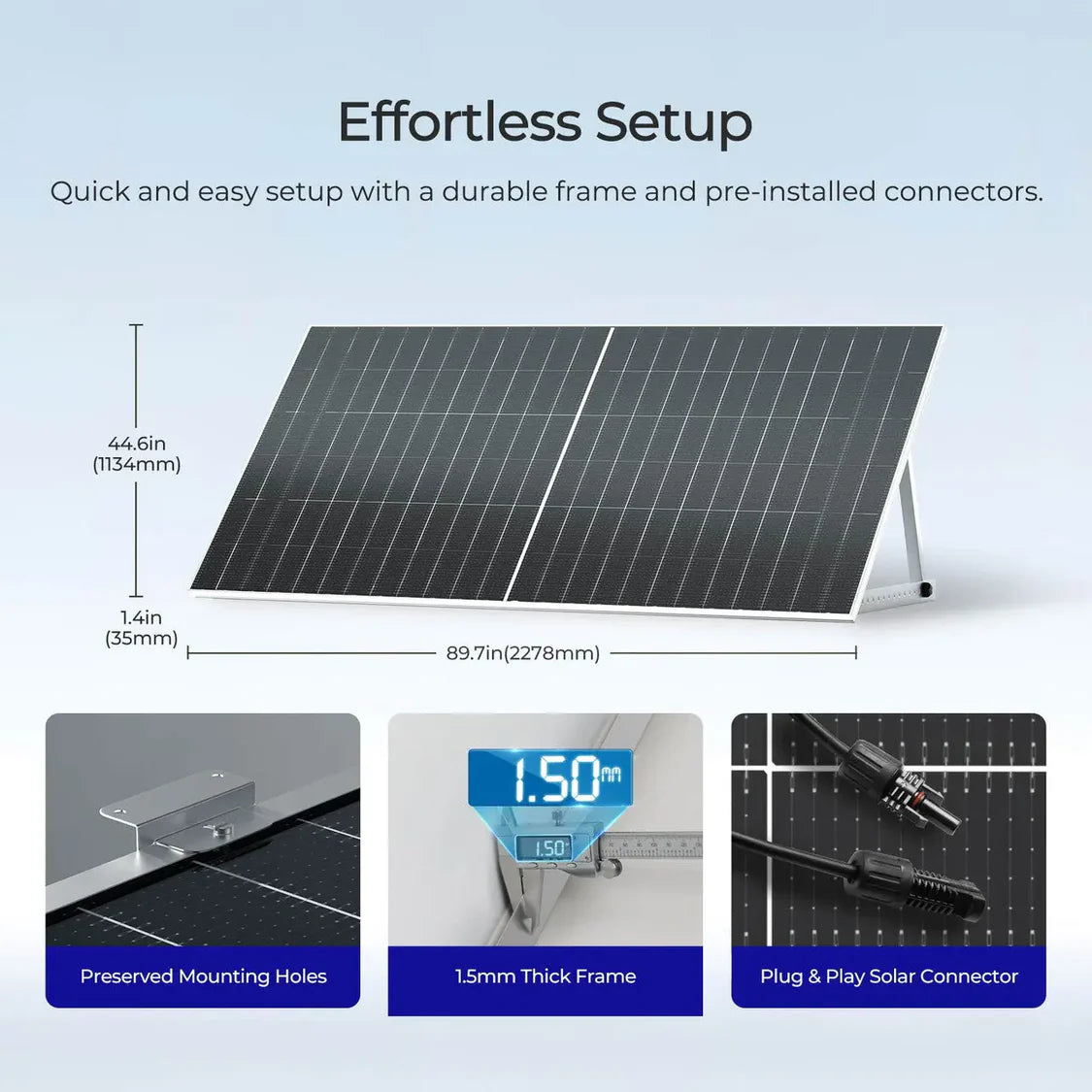

Installation Ready
- Pre-drilled holes on the back of the panel allow for fast mounting and securing.
- Pre-drilled holes included for grounding.
| Specifications | |
|---|---|
|
Maximum Series Fuse Rating: 25A |
Connectors: MC4 |
| Maximum Power: 590W | Maximum System Voltage: 1500V DC (UL) |
| Optimum Operating Voltage (Vmp): 43.71V | Open-Circuit Voltage (Voc): 52.63V |
| Optimum Operating Current (Imp): 13.50A | Short-Circuit Current (Isc): 14.13A |
| Weight: 26.5 kg（58.4 lbs） | Dimensions: 2278 x 1134 x 35mm（89.7 x 44.6 x 1.4 in） |
| Operating Temperature: -40°F to 194°F(-40°C to +90°C) | Panel Leads (Pair): 14AWG (4 m / 1.3 ft long) |
|
Material and workmanship warranty:
10 Years
|
Power Output Warranty: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty |
🚚Shipping Info:
- Due to high shipping costs for large items, this product is not eligible for free shipping. Shipping starts at $299.
