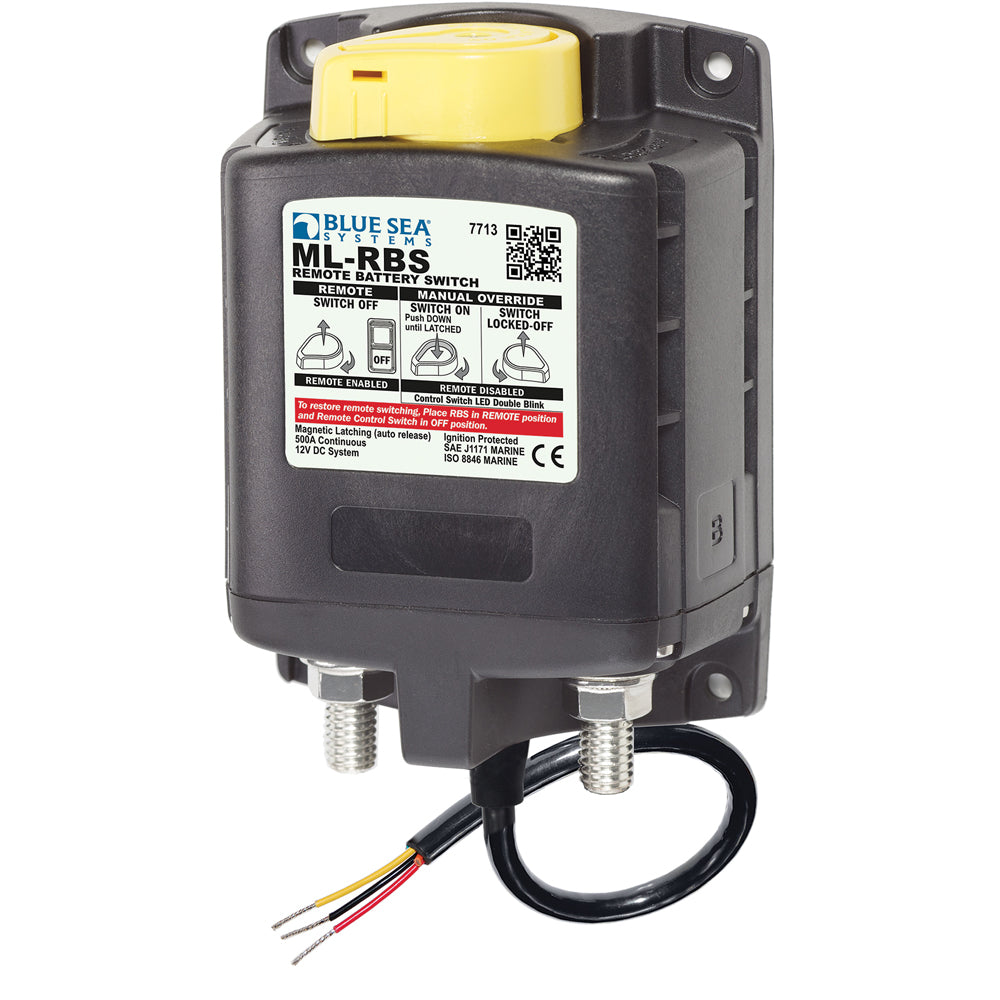

Blue Sea 7713 ML-RBS Remote Battery Switch w/Manual Control Release - 12V [7713]
Description
ML-RBS Remote Battery Switch with Manual Control Auto-Release - 12V

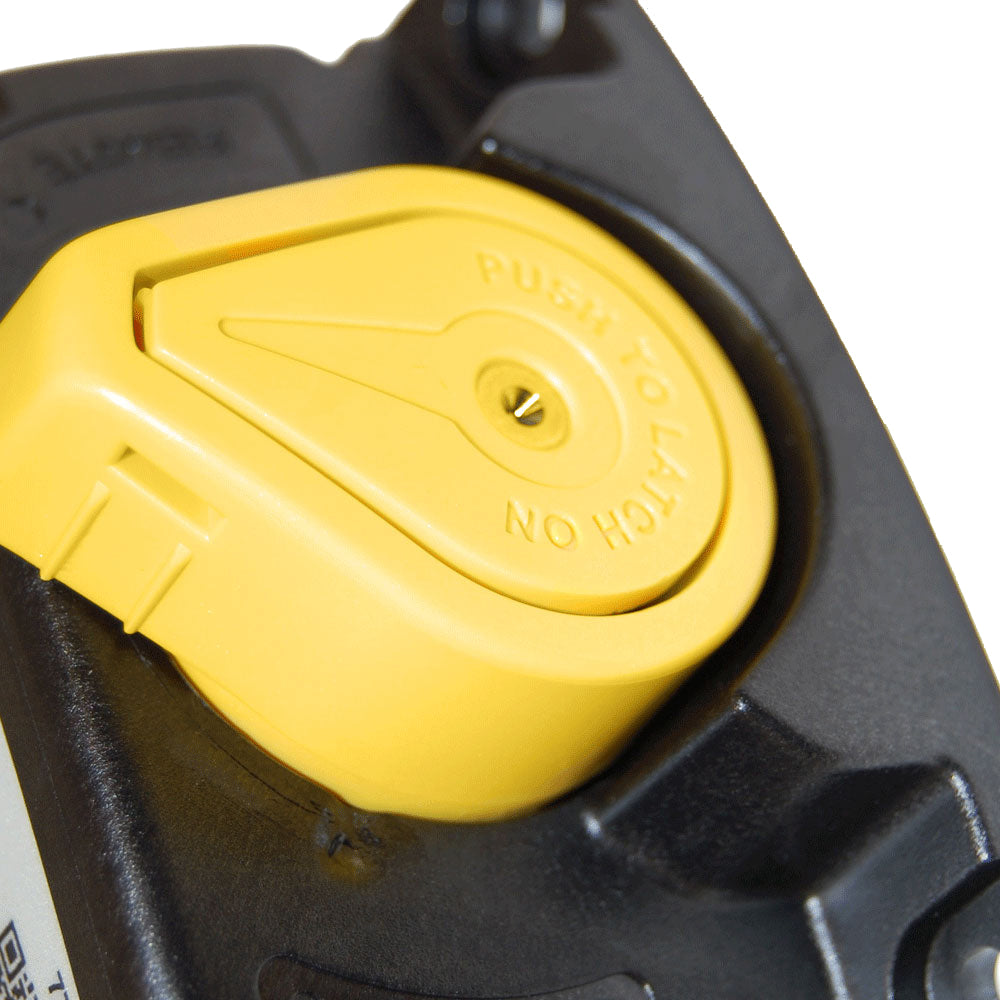

- Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
- LED output to remotely indicate switch state - requires optional LED
- 3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/ 8" (22mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Silver alloy contacts provide high reliability for switching live loads
Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired
Specifications
Control Circuit Connection:Tinned Wire
Nominal Voltage:12V DC
Coil Function: Auto releasing
Mounting: #10
Amperage Operating Current:8mA when OFF/13mA when ON
Amperage Operating Current when changing state: <7A (40 ms)
Control Circuit Voltage: 10.1 to 16.5V DC
Continuous Rating: 500A
Intermittent Rating: 700A (5 min)
Cranking Rating: 10 sec 2500A
Cranking Rating: 1 min 1100A
Minimum Operating Temperature: -10° C
Maximum Operating Temperature: 50° C
Cable Size to Meet Ratings: 2x (4/0)
Live Current Switching: 300A @ 12V DC 10,000 Cycles
Master Control Switch Capability: Yes
Mechanical Endurance: 100,000 Cycles
Switching Cycles: 100,000
Terminal Ring Diameter Clearance: 1.18" (29.97mm)
Terminal Stud Length: 0.875" (22.23mm)
Terminal Stud Size: 3/8-16 (M10)
Terminal Stud Torque: 140 in-lb (15.82 Nm)
Weight: 1.75lb (0.79 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Lockable: Yes
- Continuous Amperage: 500a
- Box Dimensions: 3"H x 7"W x 12"L WT: 2.1 lbs
- UPC: 632085077129
Owner's Manual (pdf)
Brochure (pdf)
