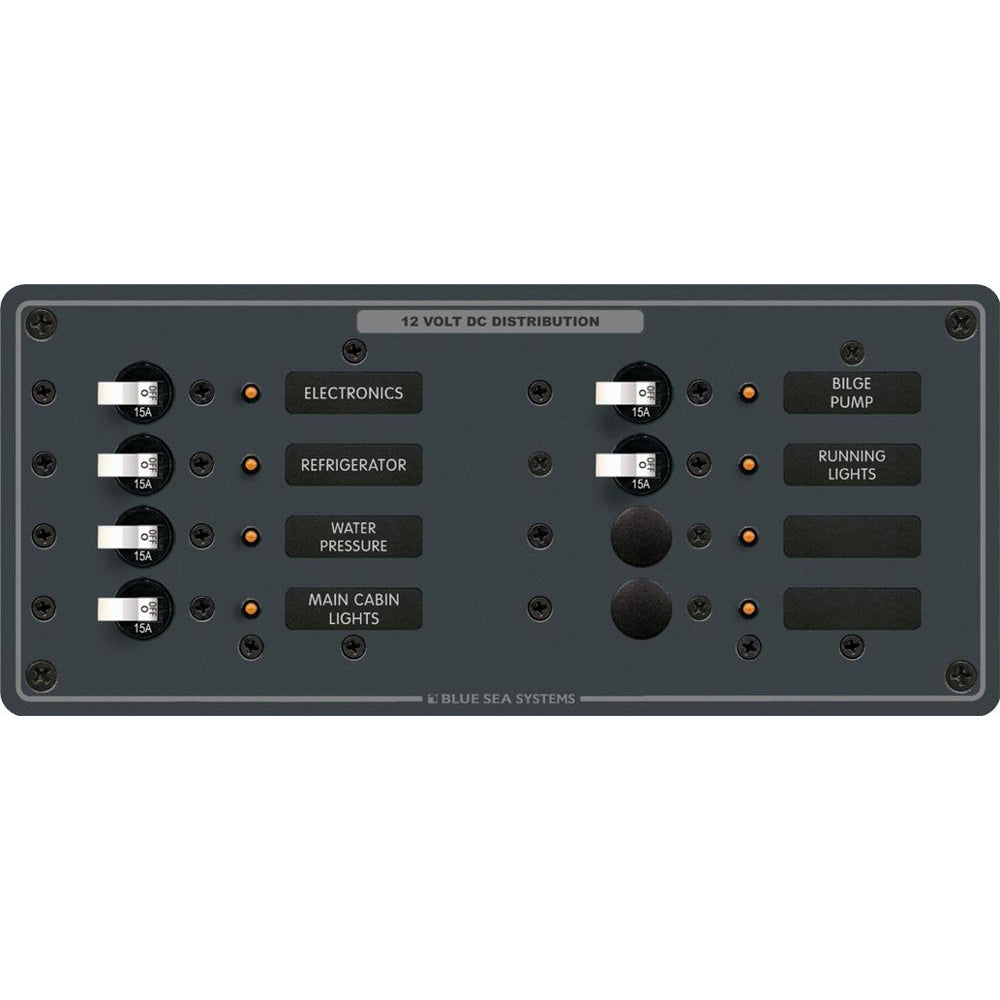

Blue Sea 8385 DC 8 Position Horizontal [8385]
Description
8385 DC 8 Position Horizontal
Features:
- Voltage 12 VDC/24 VDC
- Amperage 100A
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Industry standard height and width
- Countersunk mounting holes throughout
- Detailed installation instructions and cutout template included
- Includes set of 30 common Large Format Panel Labels
- Over 500 individual labels available
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Max Breaker Quantity: 8
- AC/DC: DC
- Voltage: 12/24v
- Box Dimensions: 5"H x 9"W x 12"L WT: 3 lbs
- UPC: 632085083854
Quick Guide (pdf)
Owner's Manual (pdf)
