LiTime 24V 200Ah
  • LiTime 24V 200Ah
  • LiTime 24V 200Ah
  • LiTime 24V 200Ah
LiTime 24V 200Ah

LiTime 24V 200Ah

$1,399.00
Description

Features

  • LiTime 24V 200Ah LiFePO4 batteries have exceptional quality for their EV Grade-A LiFePO4 Cells with FCC, CE, RoHS and UN38.3 certificated, which have a higher energy density, less size and weight, greater power, and excellent stable performance.

BATTERY

Cell Type：LiFePO4
Warranty：5 Years
Cycle Life：4000 Cycles at 100% DOD, 6000 Cycles at 80% DOD, 15,000 Cycles at 60% DOD
Nominal Voltage：25.6V
Rated Capacity：200Ah
Energy：5120Wh
Max. Expansion (Parallel & Series)：4P2S
Internal Resistance：≤40mΩ
Certifications：FCC,CE,RoHS,UN38.3
Bluetooth：NO
Self-Heating：NO

BMS

BMS：200A
Max. Continuous Output Power：
  For Electric Cart: 5000W;
  For Energy Storage: 5120W
Max. Continuous Charge Current：200A
Max. Continuous Discharge Current：200A
Max. Discharge Current 1 Second：800A
Charge Voltage：28.8V ± 0.4V

TEMPERATURE

Charge Temperature：0°C to 50°C / 32°F to 122°F
Discharge Temperature：-20°C to 60°C / -4°F to 140°F
Storage Temperature：-10°C to 50°C / 14°F to 122°F
Low-Temperature Protection：YES
Automatic Discharge Off：<-4°F/-20°C
Automatic Charge Off：＜32°F/0°C
Automatic Charging Recovery：≥41°F/5°C

OTHERS

Terminals：M8 Bolts
Weight Approx.：82 lbs

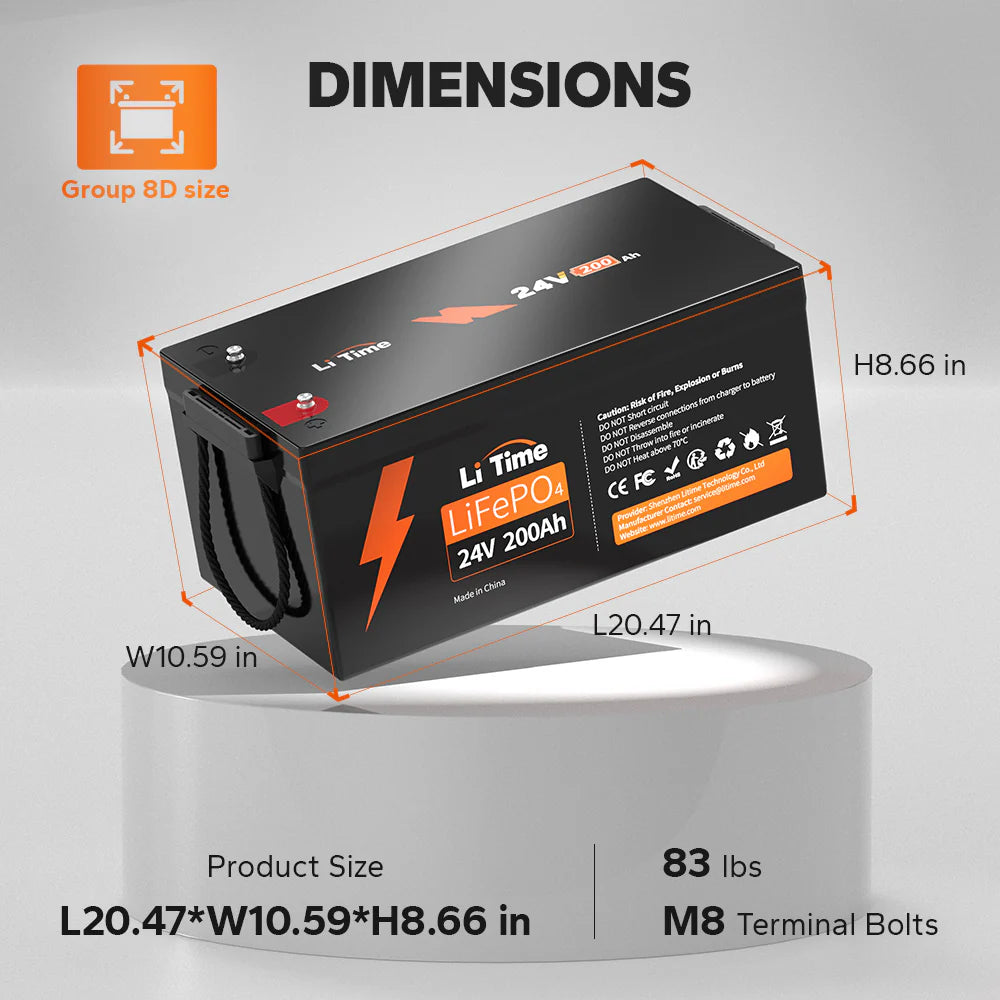

Size：L20.47*W10.59*H8.66 in
Housing Material：ABS

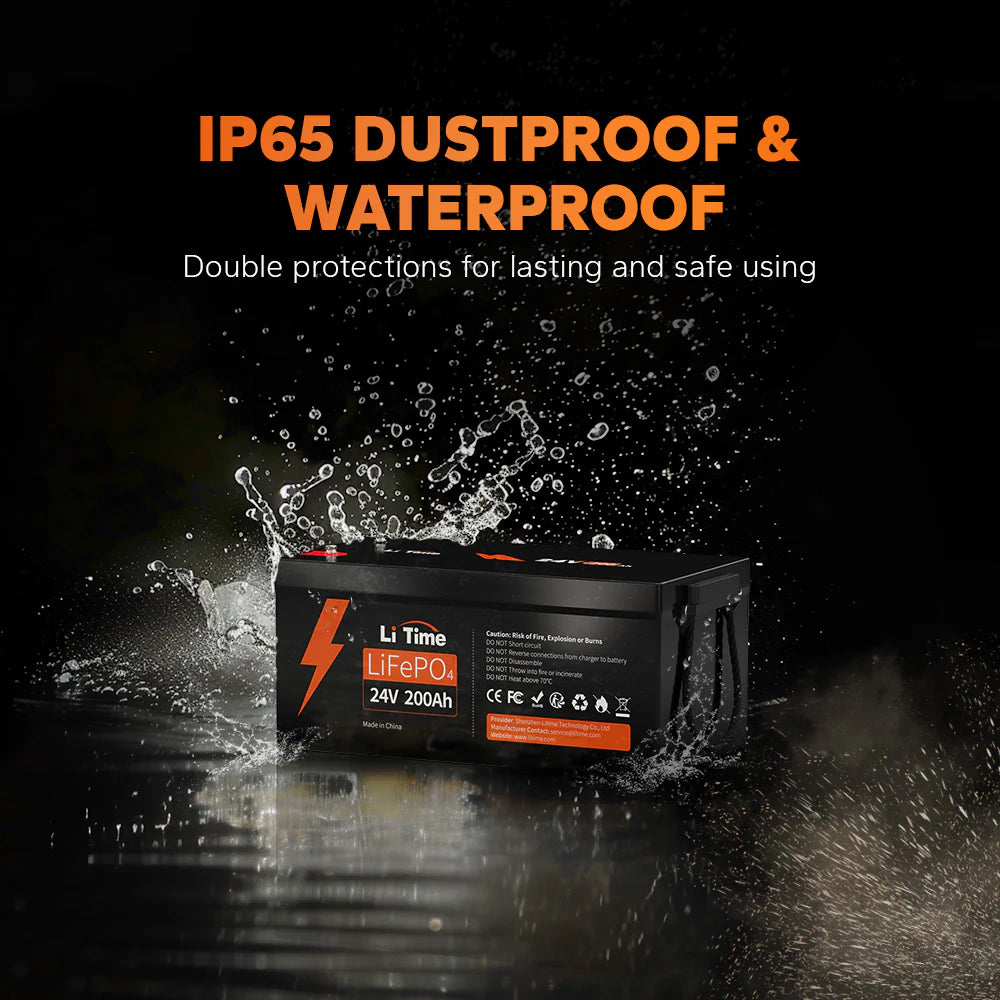

Protection Class：IP65

Can not be used as Starter Battery!
