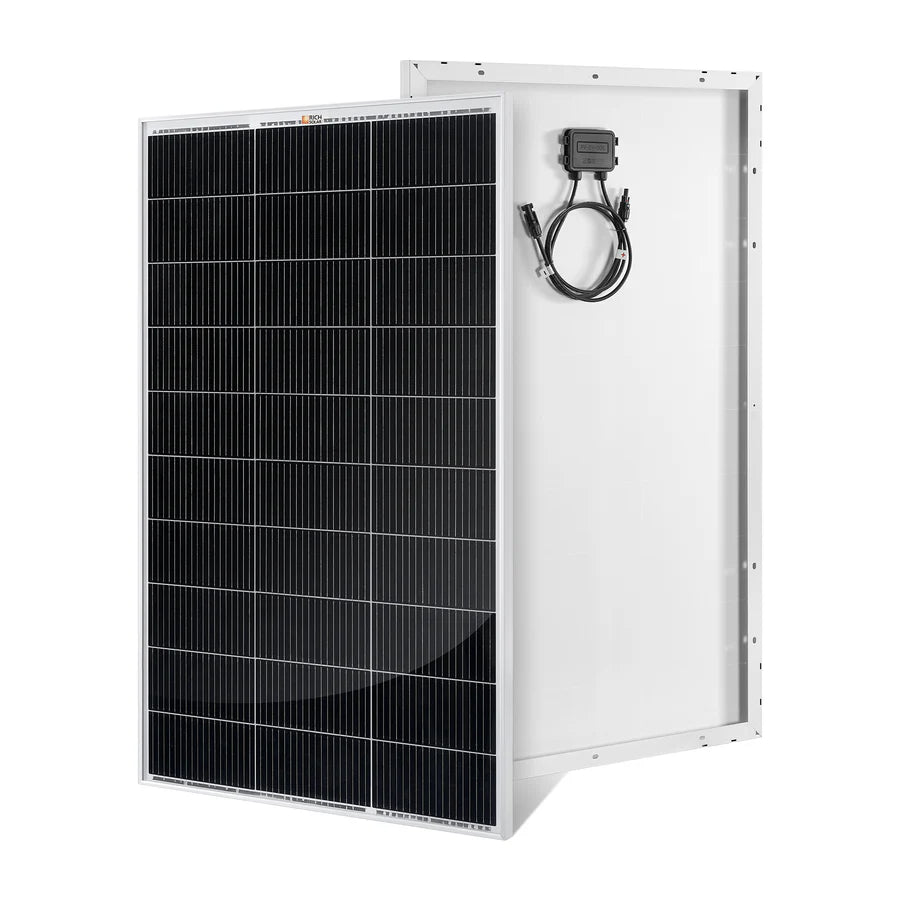

MEGA 150 | 150 Watt Solar Panel
$169.99
Features
- 12V off-grid solar panel.
- 0~+5W guaranteed positive power output.
- IP67 rated.
- Built with strong tempered glass and an aluminum frame.
- Certified to withstand challenging environmental conditions.
Installation
- Easy installation and handling for various applications.
- Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts, and tilt mounts.
- Compatible with on-grid and off-grid inverters.
Warranty
- 25-year power output warranty
- 10-year workmanship warranty
Specifications

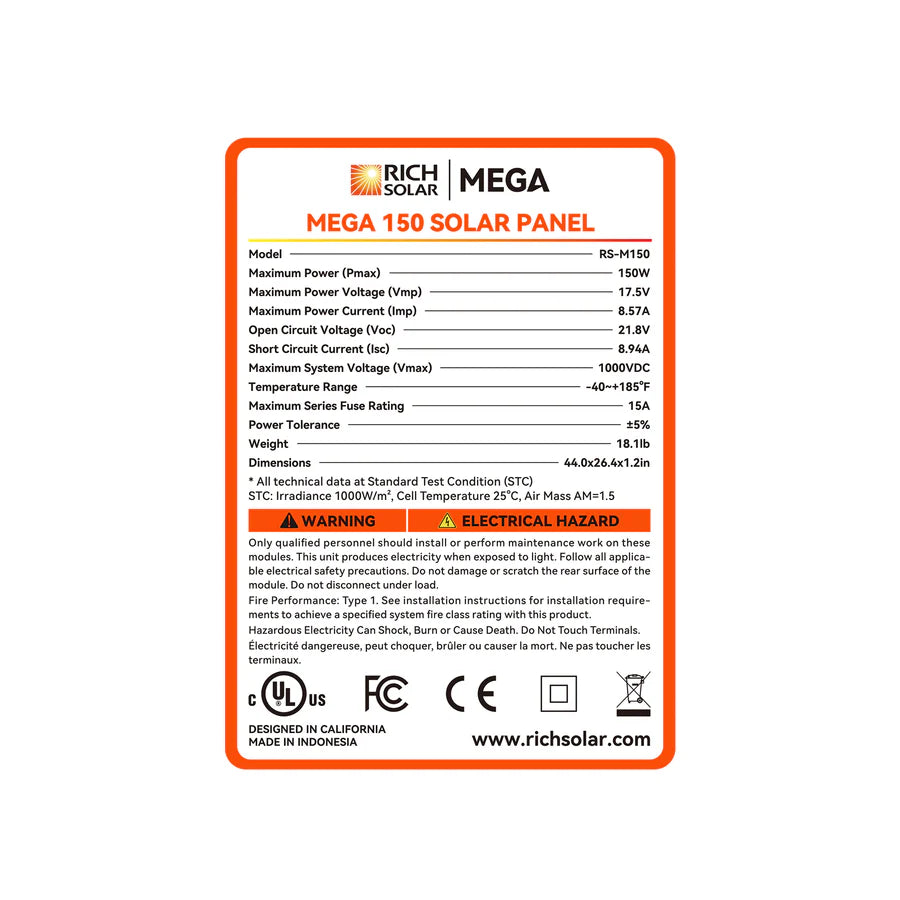

Product Specifications
- Model: RS-M150
- Maximum Power (Pmax): 150 W
- Maximum Power Voltage (Vmp): 17.5V
- Maximum Power Current (Imp): 8.57A
- Open Circuit Voltage (Voc): 21.8V
- Short Circuit Current (Isc): 8.94A
- Maximum System Voltage (Vmax): 1000VDC
- Maximum Series Fuse Rating: 15A
- Temperature Range: -40 ~ +185°F
- Weight: 18.1 lb

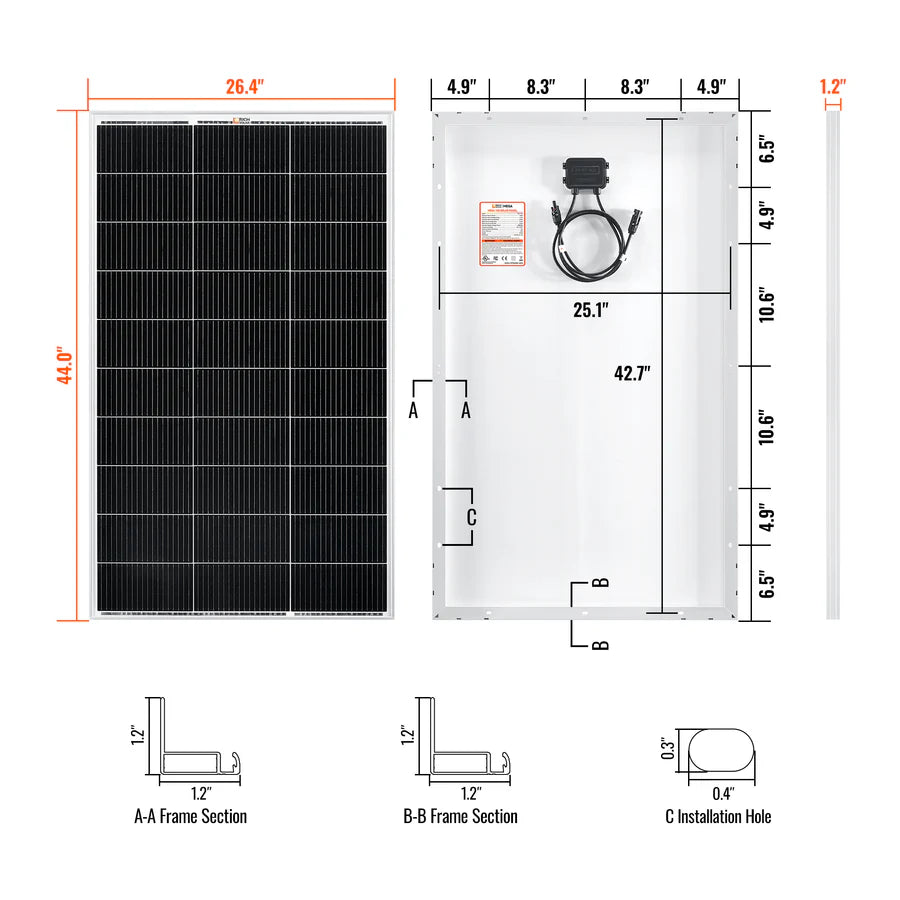

- Dimensions: 44.0 x 26.4 x 1.2 in
