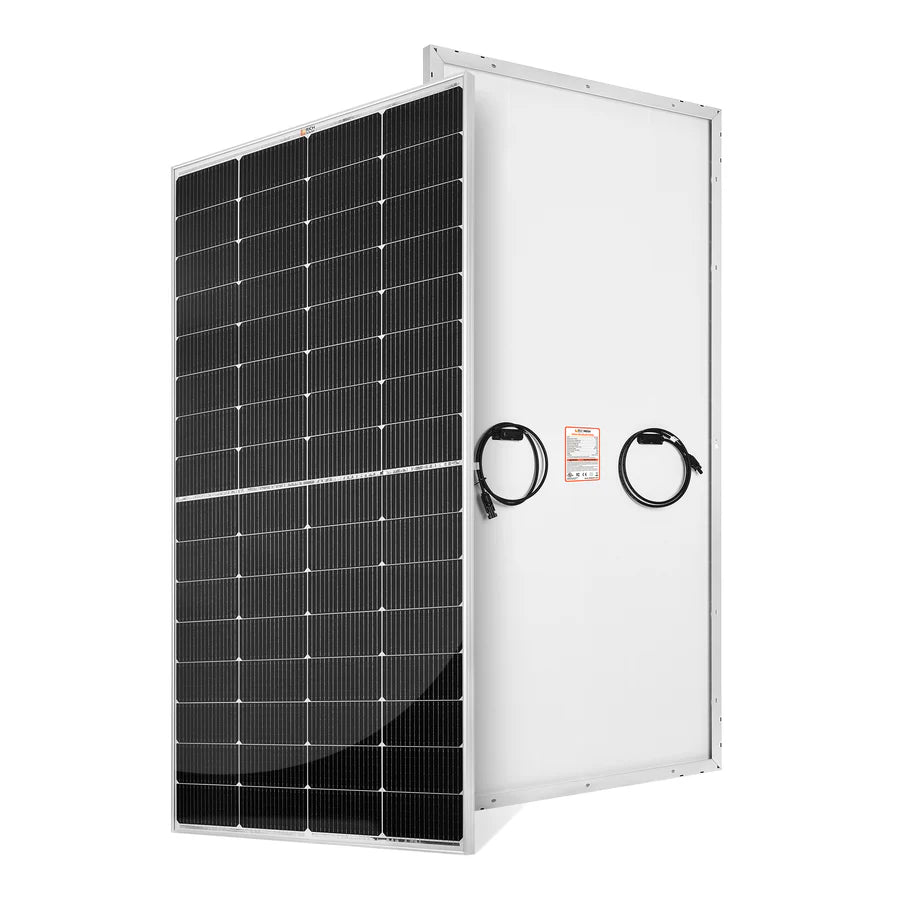

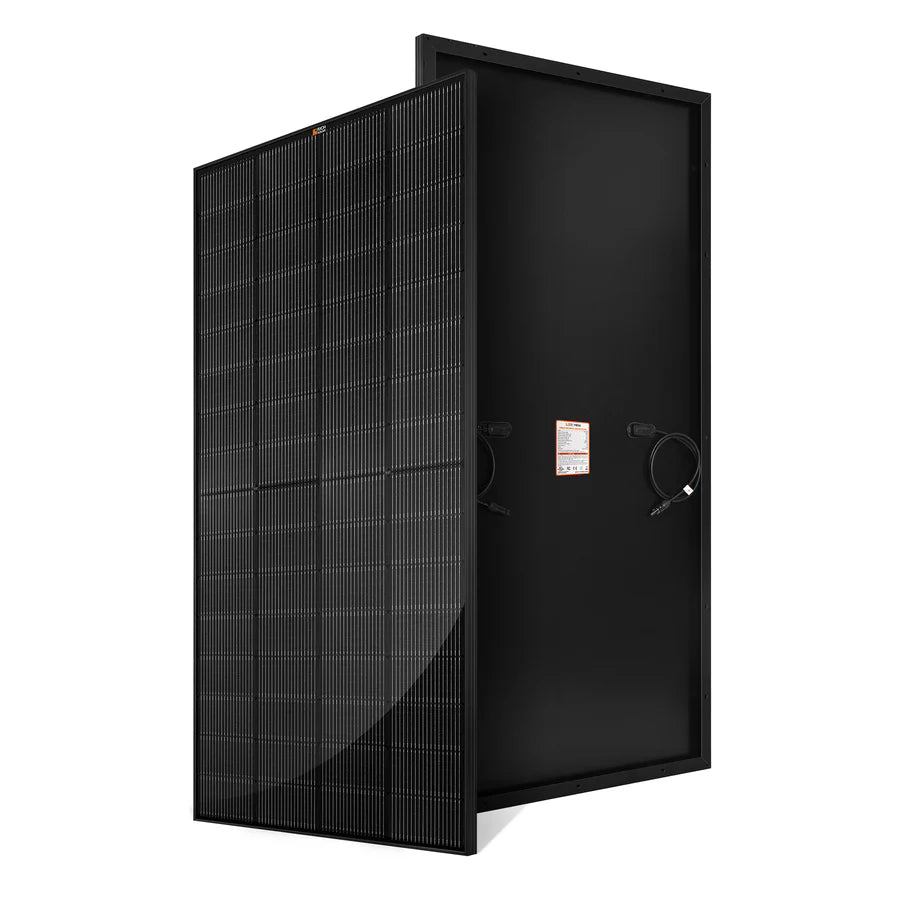

MEGA 250 | 250 Watt Solar Panel
$299.99
Features
- 16-busbar solar cell configuration
- Lightweight, anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug-and-play junction box
- Industry standard quick-connect cables work in series or in parallel
- Excellent low light performance on cloudy days, mornings and evenings
- Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection)
- Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h)
Installation
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
- Compatible with on-grid and off-grid inverters
Warranty
- 25-year output warranty
- 10-year workmanship warranty
Built-in Components
- Panel leads (pair): 3 feet each
- IP67-rated waterproof junction box
- IP67-rated waterproof solar connectors
- Bypass diodes built into the junction box

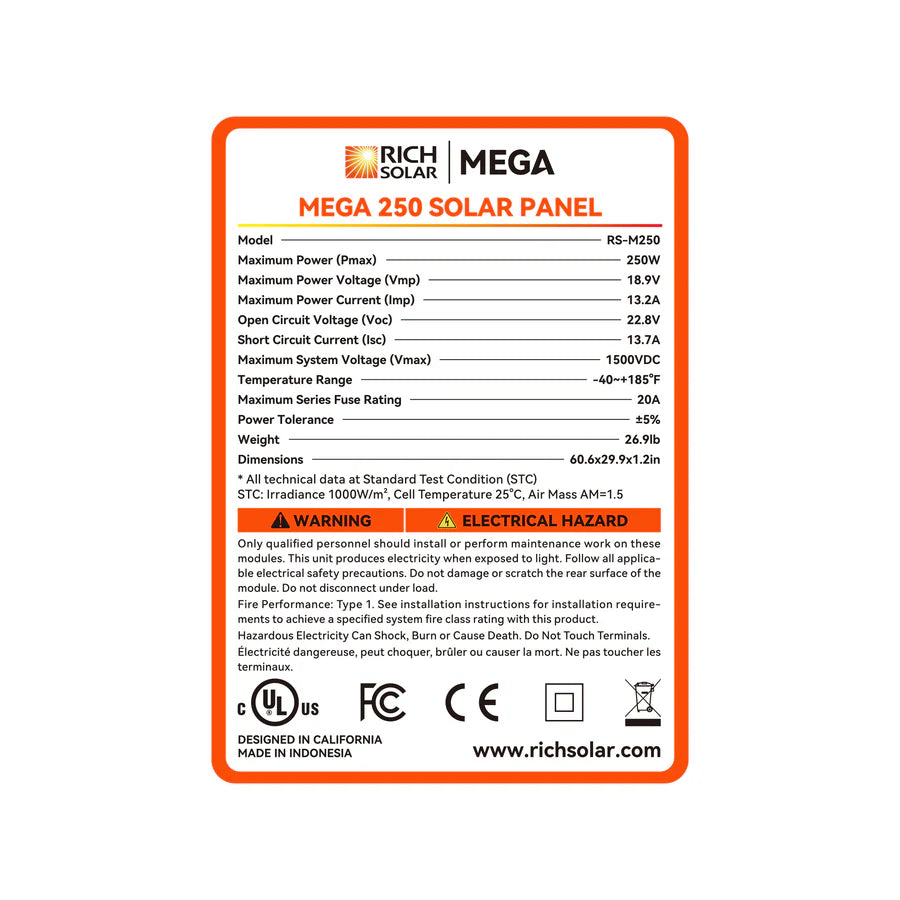

Specifications
| Maximum Power( Pmax): | 250W |
| Maximum Power Voltage (Vmp): | 18.9V |
| Maximum Power Current (Imp): | 13.2A |
| Open Circuit Voltage (Voc): | 22.8V |
| Short Circuit Current (Isc): | 13.7A |
| Maximum System Voltage(Vmax): | 1500VDC |
| Temperature Range: | -40°F~ +185°F |
| Weight: | 26.9 lb |

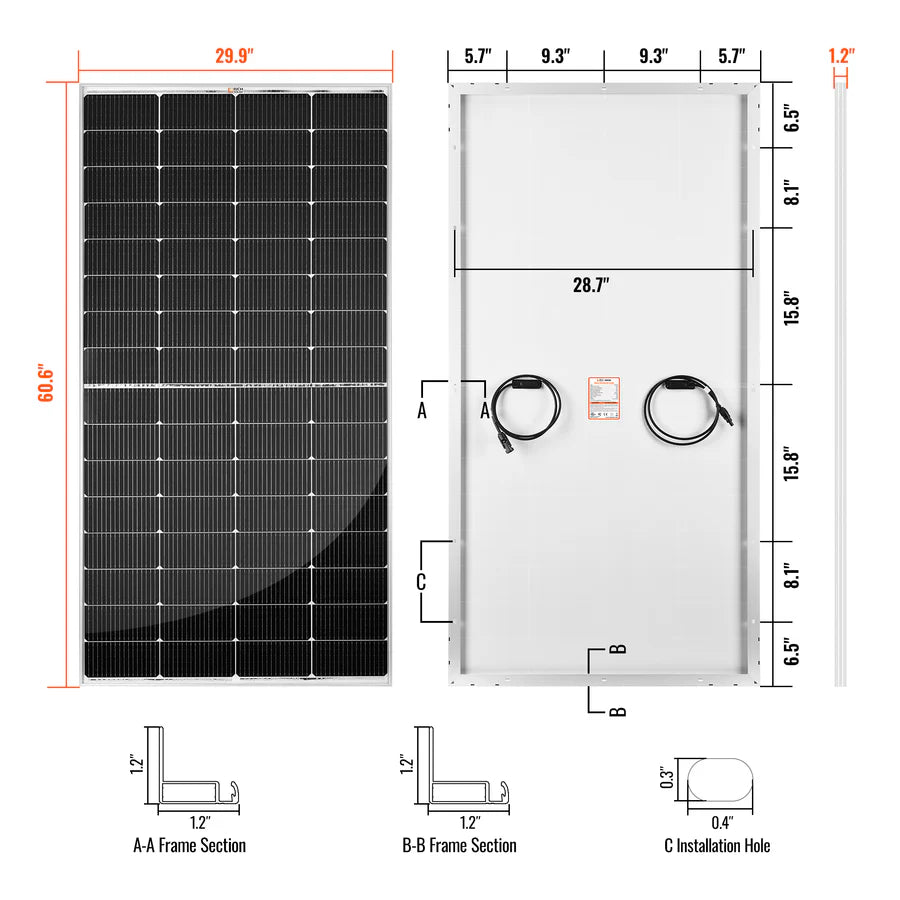

| Dimensions: | 60.6 × 29.9 × 1.2 in |
