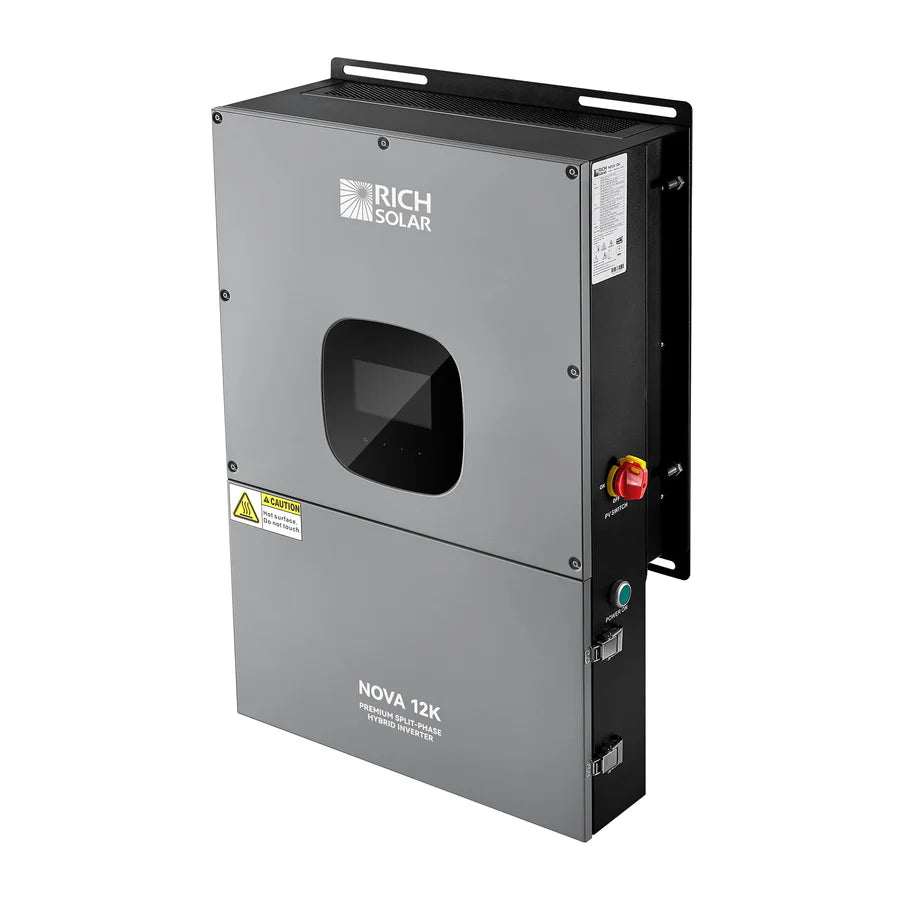

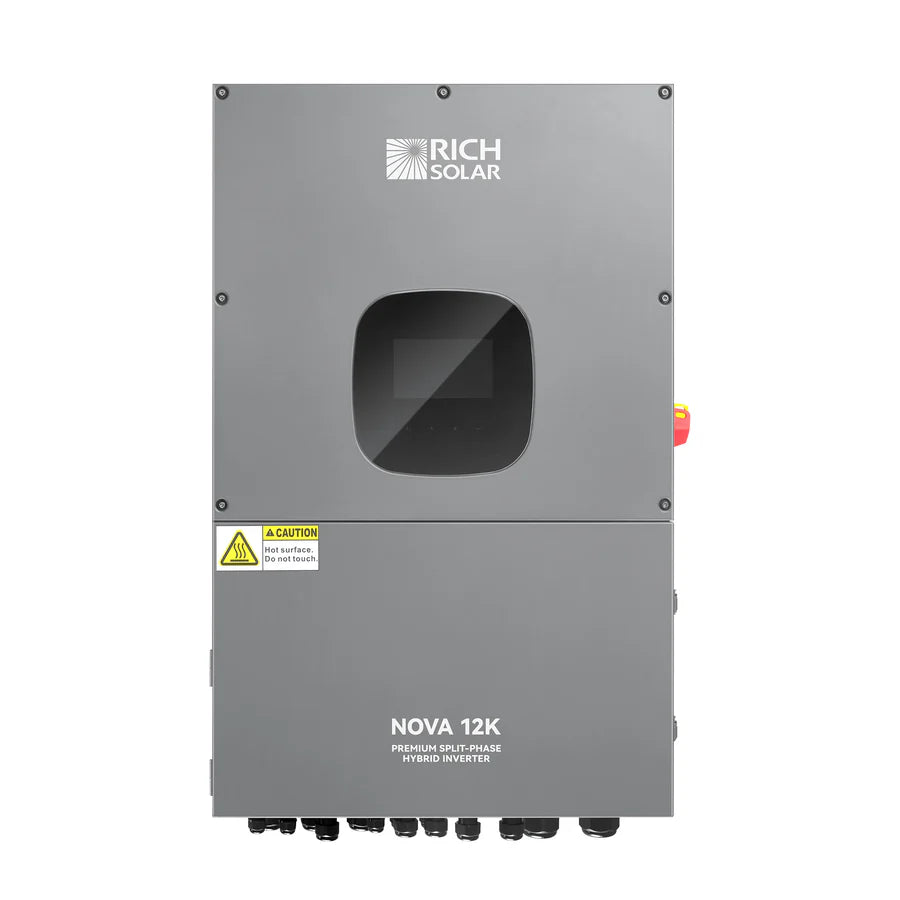

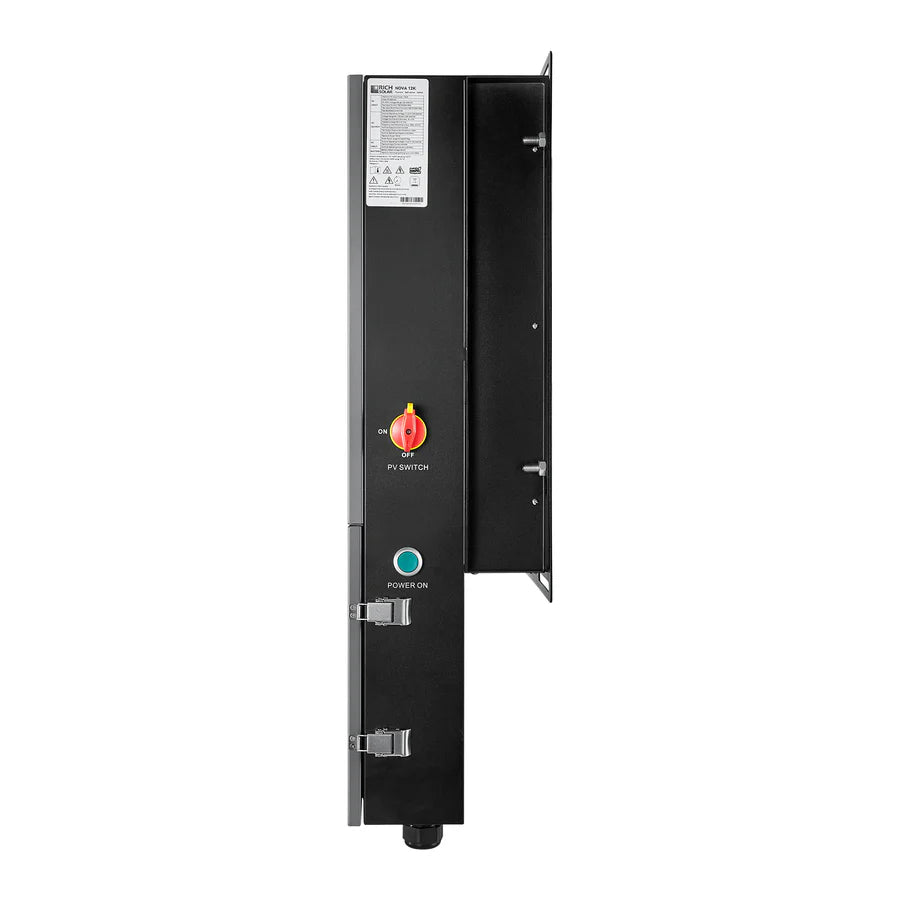

NOVA 12K | 12000 Watt (12kW) 48 Volt Split Phase Hybrid Inverter
$2,999.99
Description
Features
Power Flexibility
- 120/240V split-phase or 120/208V split-phase
- Supports generator input & AC coupling
- Scalable to 6 parallel units
Intelligent Control
- Real-time monitoring via WiFi & mobile app
- BMS integration through RS485 interface
- External CT sensor for 100% self-consumption
Advanced Safety

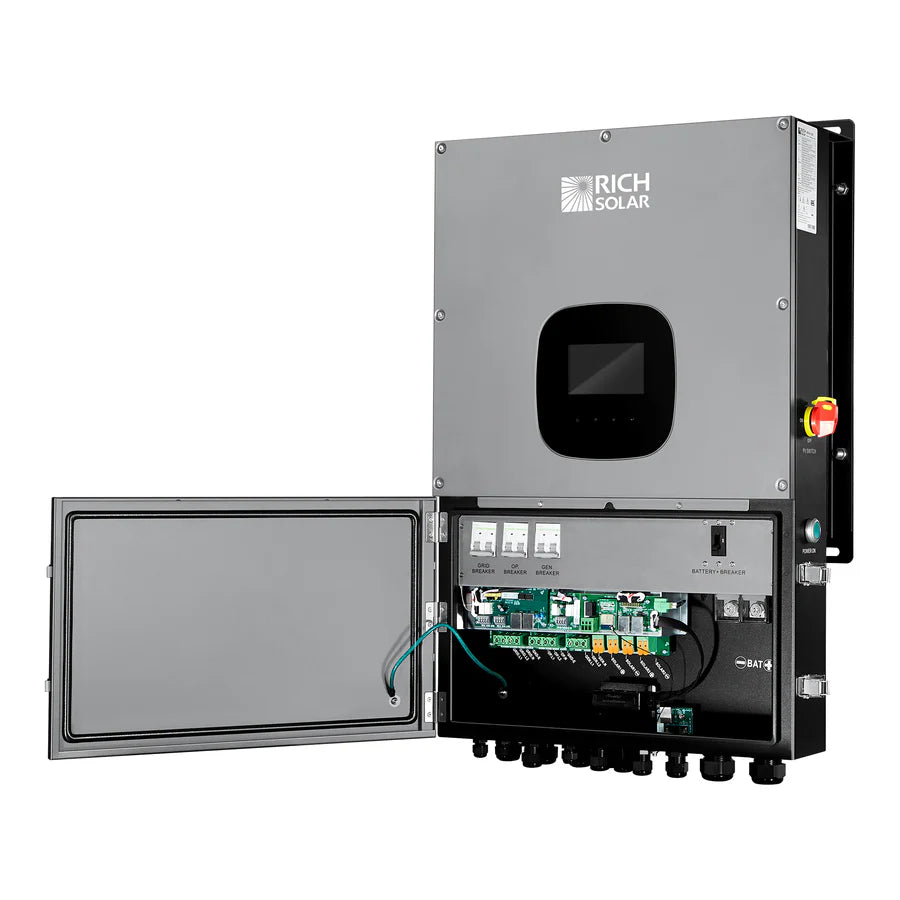

- 300A DC + 60A AC Integrated breaker
- AFD/RSD (NEC 690.11/690.12)
- Ground fault detection (NEC 690.5)
- PV input lightning protection
Premium Performance
- 91% DC-to-AC efficiency | Pure sine wave
- Multi-mode operation: Grid-tie/Off-grid/Hybrid
Specifications
-
General
- Maximum PV input power: 12000W
- Parallel capability: 6 units

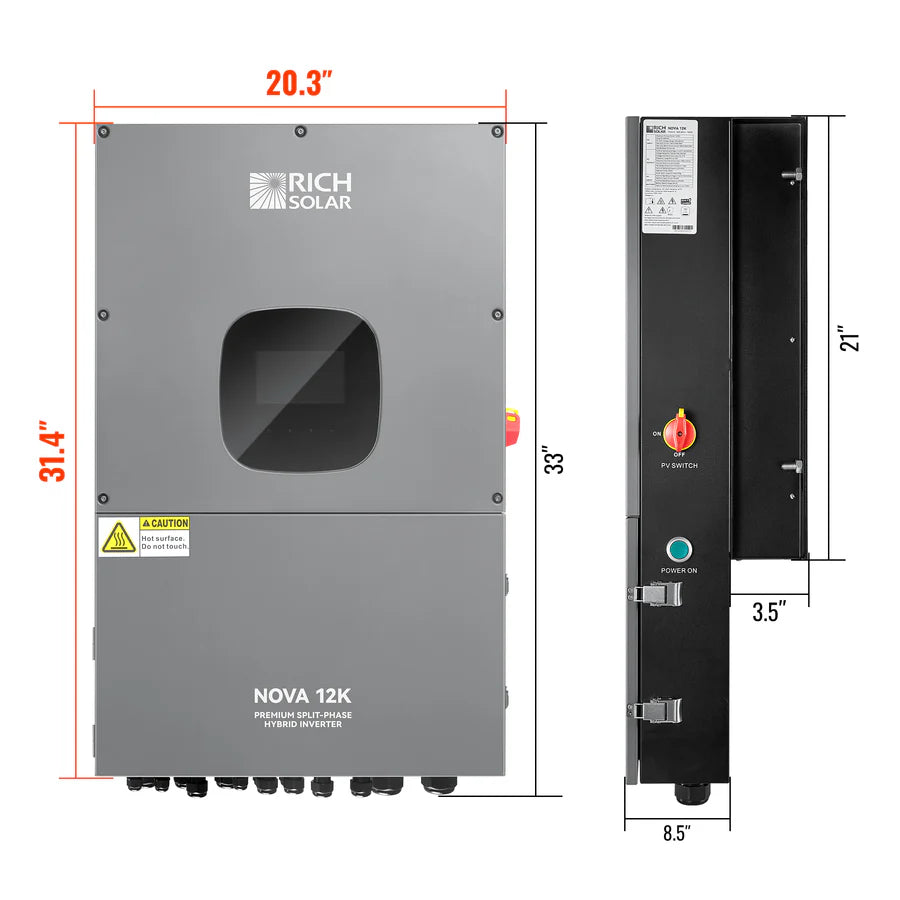

- Dimension (LxWxH): 8.5x20.3x28.1in/215x516x714mm
-
Net weight: 112lb/51kg
- Communication port: RS232, RS485, Wi-Fi, USB
-
Input
- Maximum PV input power: 12000W
- Voltage range: 120–550VDC
- Startup voltage: 125V
-
Mppt: Dual inputs — 2 × 18A (30A peak)
-
Output
- Rated output power: 10000VA/10000W
- Nominal output voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
- Output voltage range: 105.5–132VAC per phase
-
Nominal output current: 41.7A per phase
-
Certificate
- Ul 1741SA/SB, CSA C22.2 No.107.1, IEEE 1547
- Cec-listed, FCC Part 15 Class B
- Compliant with CA rule 21 and HECO rule 14H
