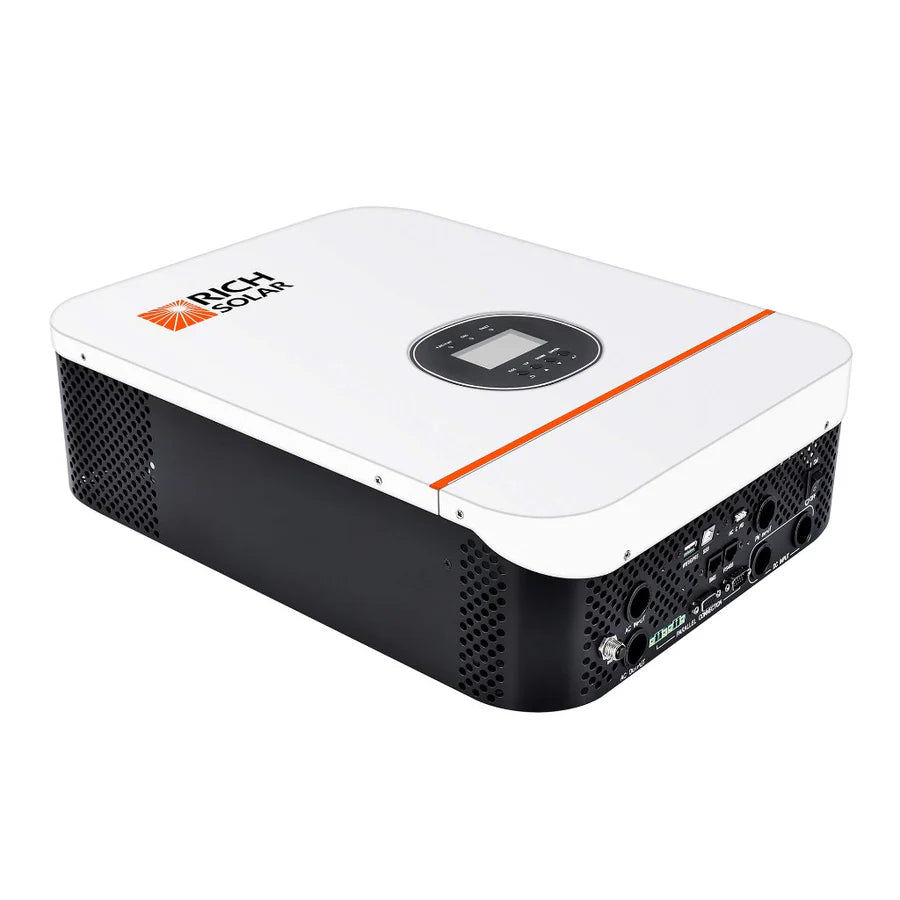

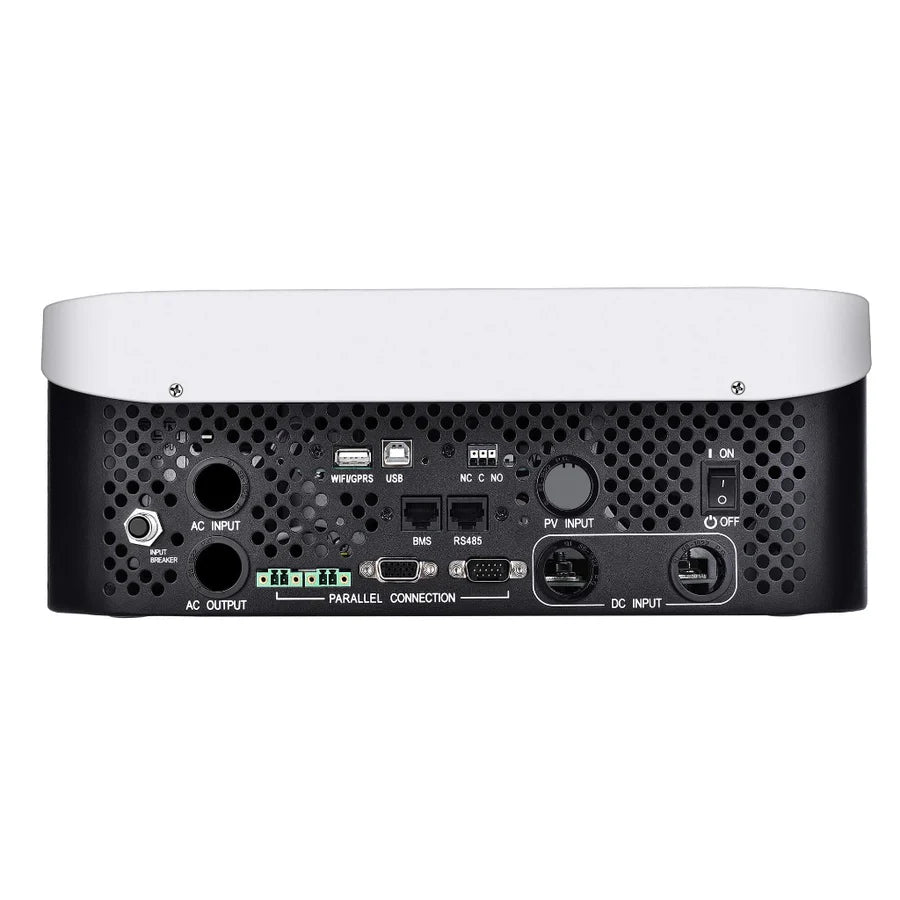

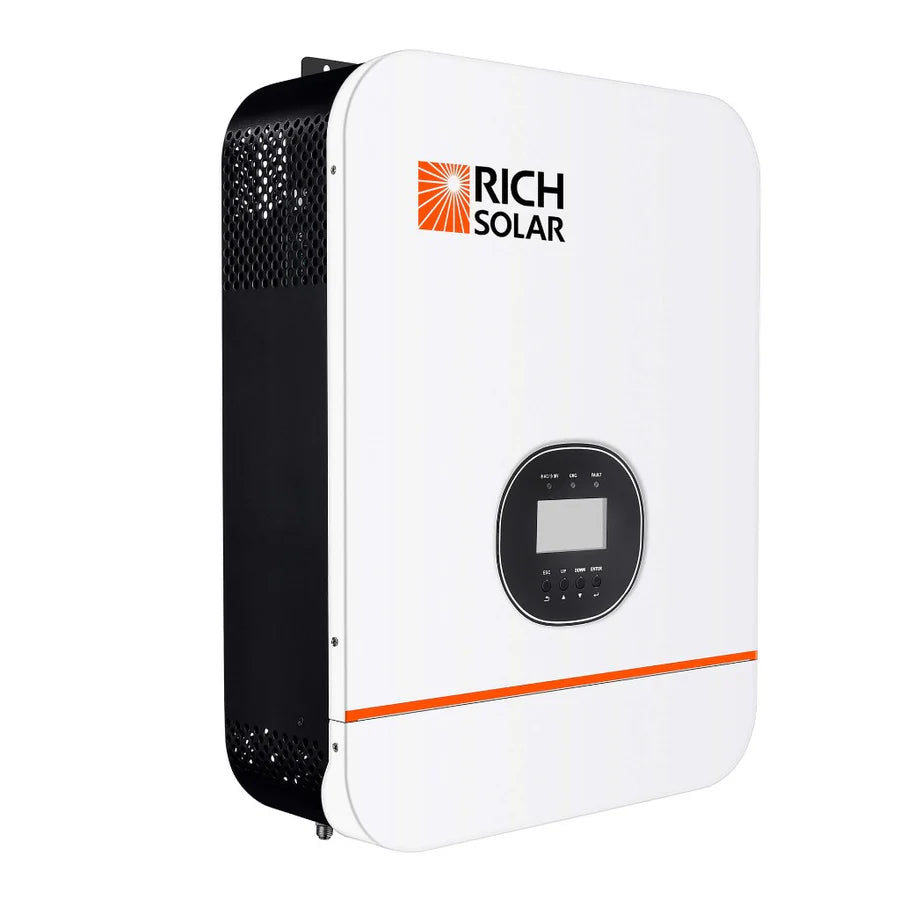

NOVA 3K | 3000 Watt (3kW) 48 Volt Solar Inverter
$899.99
Features
- Pure Sine Wave Inverter
- LED Display
- Wi-Fi/GPRS Remote Monitoring (optional)
- CAN/RS485 for BMS Communication
- Integrated MPPT Charge Controller
- Configurable Grid or Solar Input Priority
- 48V Battery System
- Compatible with Mains Voltage or Generator Power
- High-Frequency Inverter with Small Size and Lightweight
- Overload, Short Circuit and Deep Discharge Protection
- Parallel Operation Up to 6 Units Off-grid Capabilities
Specifications
-
- Rated Power: 3000VA/3000W
- Parallel Capability: Yes
- AC Voltage Regulation (Battery Mode): 120 VAC
- Efficiency (Peak): 90%
- Waveform: Pure Sine Wave
- Transfer Time: 10ms Typical, 20ms Max @ Single <30ms @ Parallel
- Weight: 25.4 Lb
- Dimensions: 13.8″L x 5.1″W x 17.9″H
-
Solar Charger Input
- PV Array MPPT Voltage Range: 60VDC ~ 115VDC
- Maximum PV Array Open Circuit Voltage: 145VDC
- Waveform: Pure Sine Wave
- Max Solar Charge Current: 80A
- Maximum Efficiency: 98%
- Standby Power Consumption: <50W
-
AC Outlet Charger
- Charge Current: Default: 30A, Max 40A
- AC Input Voltage: 120VAC
- Selectable Voltage Range: 95-140 VAC (For Personal Computers); 65-140 VAC (For Home Appliances)
- Frequency Range: 50Hz/60Hz (Auto Sensing)
