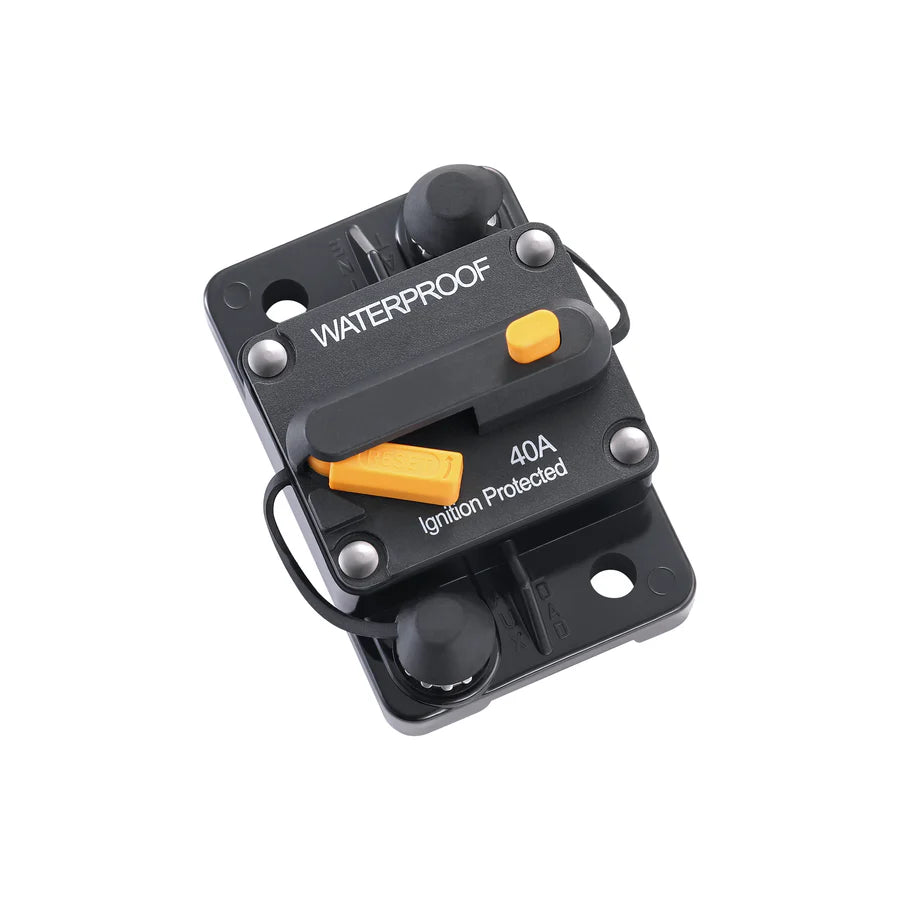

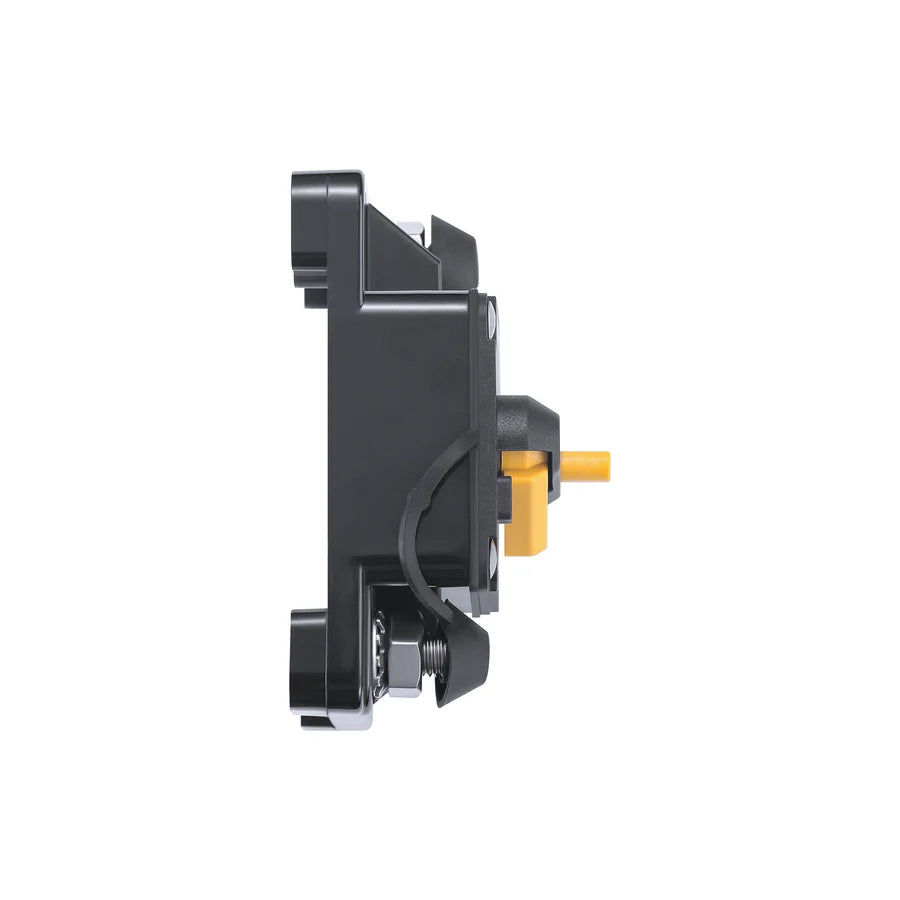

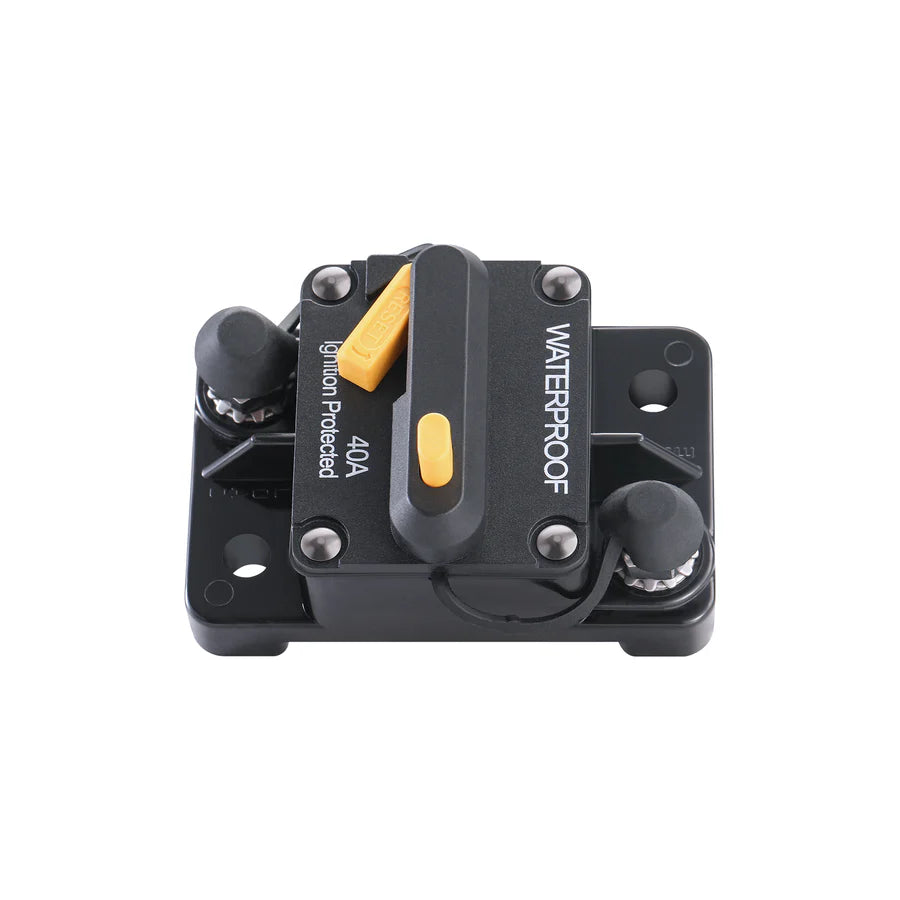

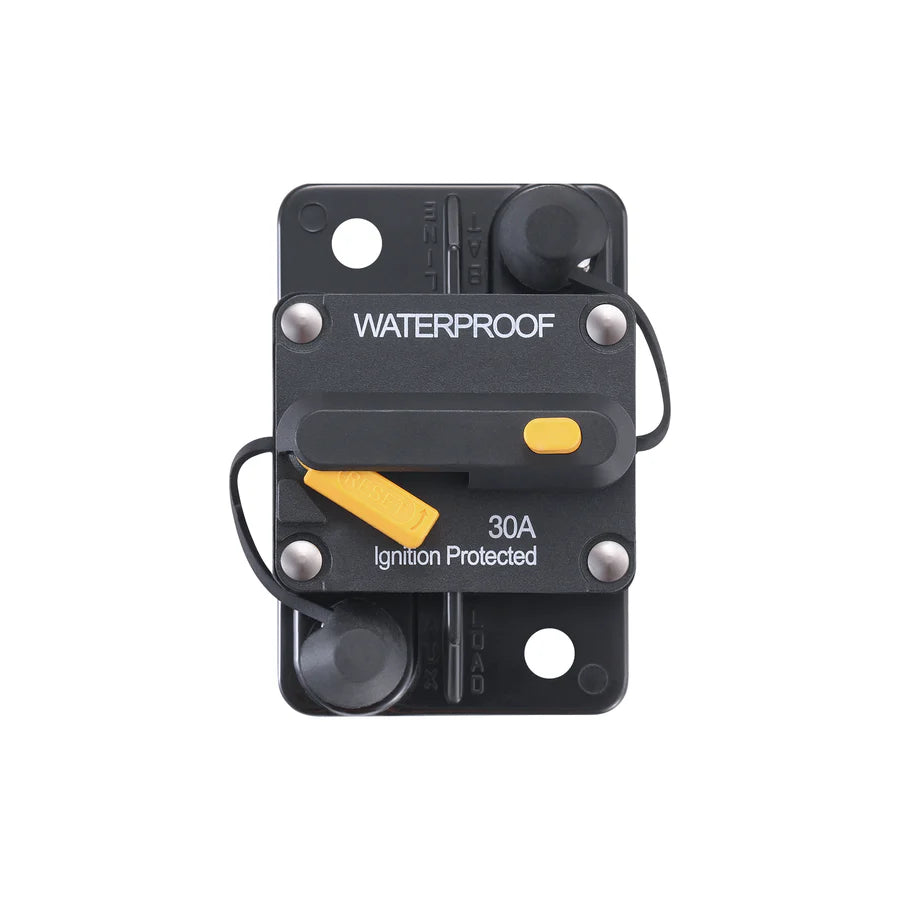

Waterproof Circuit Breaker | Thermal Type Breaker
$27.99
Description
Features
1. Advanced Electrical Protection
- Overload & Short-Circuit Defense: Instantly cuts power when current exceeds limits, protecting sensitive electronics
- High Interrupt Rating: Safely interrupts up to 3,000A @ 30VDC
2. Manual Reset Convenience
- Push-to-Trip Button: Allows manual testing or circuit shutdown
- Reset Lever: Quick and secure restart after interruption
3. Built for Harsh Environments
- IP67 Waterproof & Dustproof: Fully sealed for reliable outdoor use
- Rugged Housing: Flame-retardant UL 94V-0 thermoset plastic with insulated terminals
- Wide Application Range: Ideal for trucks, buses, RVs, boats, ATVs, DC chargers, winches, and more
Specifications
- Rating: 25-250A, 30VDC; 48VDC
- Interrupt Rating: 3000A @30VDC
- Operating Temperature Rating: -25°F (-32°C) to 180°F (82°C)
- Storage Temperature Rating: -30°F (-34°C) to 300°F (149°C)
- Materials: Black UL-rated 94V0 thermoplastic. Thermoplastic elastomer stud insulators are provided on covered units with F-style (Surface-mount) bases.
- Termination: 1/4-28 or 3/8-16 threaded studs
- Torque Rating: S 50 in-lbs (5.6N·m) max
- Mounting Torque Rating: Panel or surface-mount options; 50 in-lbs (5.6N·m) max. The threaded insert option has a max torque of 25 in-lbs (2.8N·m)
- Ingress Protection Rating: IP67
- Compliance: SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected)
